There isn't just one "better" opening. Which option is best for you depends on your needs. When full bore flow and high pressure are needed, a ball valve is usually the best way to turn something on or off and close a pipe tightly. When cost and room are very important, a butterfly valve is the best way to slow the flow through big lines. A trunnion-mounted ball valve is often the best choice for oil and gas uses that need to be leak-proof and able to handle high pressures. A high-performance butterfly valve is the most efficient way to control big amounts of water or slurry. To make the best pick, you need to weigh performance, cost, and room.

Valves

CEPAI knows how important this choice is because it is one of the biggest companies in the world that makes high-integrity pipeline valves for the energy industry. An expert-led comparison will be given in this guide to help you make the best choice for your industrial pipeline.

How Ball Valves and Butterfly Valves Work: Key Differences

We need to take a look under the hood to figure out which valve is better. Both are quarter-turn valves, which means they must be turned 90 degrees to open or close. However, their internal systems and how they work are very different. Their success, skills, and flaws are all based on this basic difference.

The Ball Valve: A Rotating Sphere for Positive Seal

A disc that is round and has a hole in the middle is used in a ball valve. The hole lines up with the pipe when the valve is open, letting water run. When you turn the handle 90 degrees, the solid part of the sphere moves into the flow line and blocks it fully. When fully open, this form makes a straight-through flow path with little noise and pressure drop. Pressing the round edge of the ball firmly against robust seats (like PTFE or PEEK) makes the seal, which is a very good, positive shut-off. This makes it a great choice for situations that need a bubble-tight seal.

The Butterfly Valve: A Pivoting Disc for Flow Regulation

A butterfly valve has a flat, round disc that turns on a bar in the middle of the pipe. When the disc is open, it lies flat against the flow and doesn't get in the way very much. When the disc is closed, it turns 90 degrees and stands straight up, stopping the flow. A pressure drop is caused by the disc staying in the flow stream even when it is fully open. But this form is what makes it so good at slowing down or controlling flow. By only partly opening the disc, you can exactly control the flow rate, which is hard to do with a regular ball valve and can even damage it.

Core Design & Sealing Mechanism: The Deciding Factor

The most important change is the way the seals work. You can tell if a ball valve works by how well the ball fits against the soft or metal seats. This makes the bond stronger, especially in low-pressure situations. Live-loaded seats in high-performance ball valves keep the closing force even as the seats wear down. Butterfly valves depend on how well the disc fits and how strong the seat material is (like EPDM or Viton). Modern triple-offset butterfly valves leak almost nothing, but a normal circular butterfly valve can't match a ball valve's bubble-tight seal. For dangerous or valuable fluids, this is a very important thing to think about when picking a valve.

Head-to-Head Comparison: Performance in Key Industrial Scenarios

Theory is one thing, but real-world performance is what matters. Let's compare these valves across the metrics that engineers and procurement managers care about most: pressure, temperature, flow control, and cost. This table will give you a quick overview before we dive into the details.

Pressure & Temperature Ratings: Handling the Heat

When it comes to high-pressure environments, the ball valve is the undisputed champion. Its robust, spherical design distributes pressure evenly, allowing it to handle pressures exceeding 15,000 psi in some trunnion-mounted designs. This is why they are the standard for oil and gas wellheads and high-pressure chemical injection systems. Butterfly valves, while improving, are generally rated for lower pressures. Even high-performance lug or wafer-style butterfly valves typically max out around 2,500 psi. For high-temperature steam or cryogenic services, both valves have specialized designs, but the forged steel construction of many ball valves gives them an edge in extreme thermal cycling.

Flow Control & Pressure Drop: Efficiency vs. Regulation

This is where the choice becomes very clear. If your priority is moving the maximum volume of fluid with the least energy loss, the ball valve wins. Its full-bore design creates a straight, unobstructed path, resulting in a very low pressure drop. This is crucial in long pipelines where pumping costs are a major operational expense. However, if you need to control the flow rate, the butterfly valve is the only real choice. Its disc design allows for precise and stable throttling without damaging the valve. Attempting to throttle a ball valve can cause high-velocity fluid to erode the seats and ball, leading to premature failure and leakage.

Size, Weight, and Cost: The Economic Reality

For pipes 24 inches and larger, the butterfly valve has a massive advantage. It is significantly smaller, lighter, and less expensive than an equivalently rated ball valve. A 48-inch ball valve is a massive, heavy, and costly piece of equipment requiring significant foundation and actuator support. A 48-inch butterfly valve is comparatively compact and light, making installation and maintenance much simpler and cheaper. For large HVAC, water treatment, or slurry pipelines where on/off service is primary, the economic benefits of a butterfly valve are impossible to ignore.

The Verdict: Which Valve Should You Choose for Your Pipeline?

After comparing the specs, the final decision comes down to your specific application. Ask yourself these four critical questions. Your answers will point you directly to the right valve. This is the practical guide that moves you from theory to a confident purchasing decision.

Choose a Ball Valve When: Your Priority is Safety and Integrity

Select a ball valve when your application is non-negotiable. This includes oil and gas production, high-pressure hydraulic systems, and chemical injection where zero leakage is a safety and environmental requirement. Choose it for on/off service in pipelines up to 12-16 inches where you need a guaranteed tight shut-off. It's also the right choice for pigging operations, as a full-port ball valve provides a smooth, unobstructed path for cleaning pigs to pass through. For CEPAI's clients in the energy sector, this is often the default choice for wellhead and Christmas tree applications.

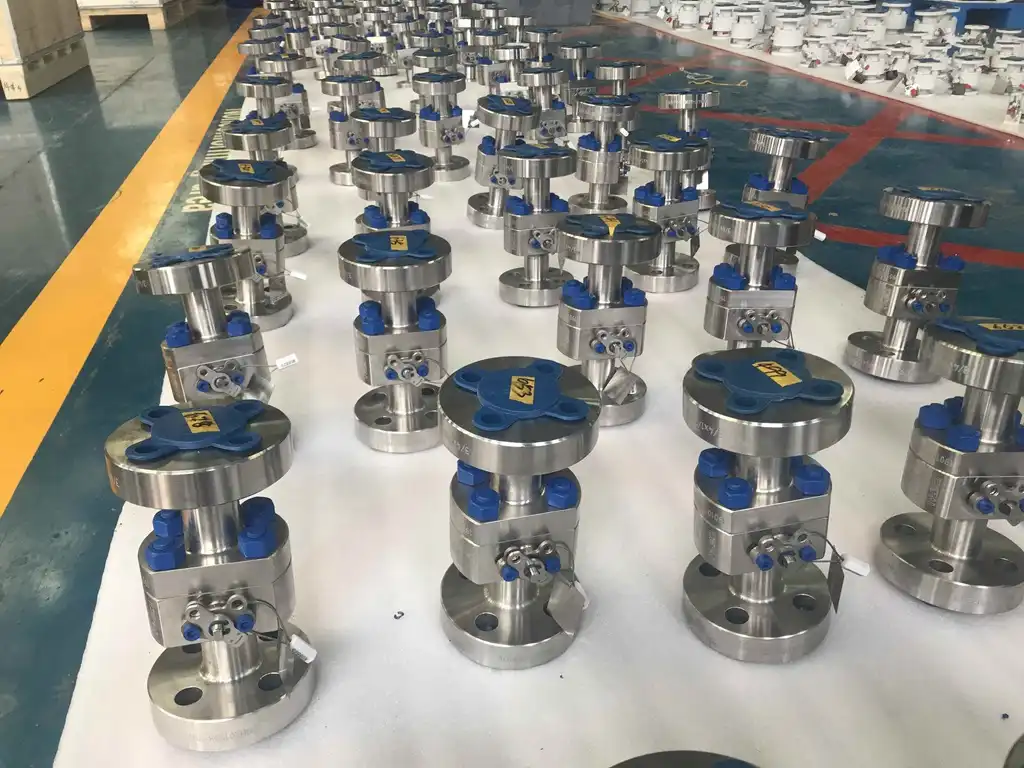

Cepai Ball Valves

Choose a Butterfly Valve When: Your Priority is Flow Control and Scale

Select a butterfly valve when you need to regulate flow in large-diameter pipes. This is its killer app. It's perfect for water distribution, HVAC systems, fire protection, and slurry handling. Choose it when you are working with pipes 24 inches or larger, where the cost and weight of a ball valve become prohibitive. It's also ideal for applications where rapid operation is needed, such as an emergency shutdown system, as the 90-degree turn is much faster than the multiple turns of a ball valve handle.

The Hybrid Approach: Using Both in a Single System

In complex industrial plants, it's not an "either/or" choice. Smart designs use both. For example, a large water pipeline might use a butterfly valve as the main isolation valve because of its low cost and light weight. But for a small, critical chemical dosing line branching off that main pipe, a ball valve would be used for its superior shut-off capability. This hybrid approach leverages the strengths of each valve, optimizing the system for both performance and cost. Understanding when and where to use each is the mark of a true pipeline design expert.

Conclusion

Which one is better? It is easy to answer: the right valve for the job. A ball valve is the best way to close something and is the standard for high-pressure, on/off uses where safety is very important. A butterfly valve is the best way to control flow and save money. It is the market leader for large-diameter throttling and separation services. You shouldn't just say that one is "better" than the other; your choice should be based on a clear understanding of your process needs.

FAQs

Is it possible to use a butterfly valve for on/off service?

Yes, without a doubt. For on/off service, butterfly valves work great, especially in big lines. Triple-offset versions that are high-performance offer a tight shut-off that works well for most isolation tasks. But a ball valve is still the better choice for situations that need exact zero leaking (bubble-tight).

Why does a butterfly valve cost less than a ball valve?

The change in price is due to the complexity and materials used. To hold high pressure, ball valves, especially the bigger ones, need a big, precisely made circular ball and a strong body. Butterfly valves are much easier to make because they have a smaller disc and a body casting that isn't as complicated. This is especially true for sizes bigger than 12 inches.

Is it easier to keep one valve in good shape than the other?

In general, it's easier to service butterfly valves that are in line. In many versions, the seat can be changed without taking the valve out of the waterway. Ball valve repair can be more difficult because the valve has to be taken apart to change the seat or ball. However, top-entry versions are making this easier. The butterfly valve is often easier to maintain because it is made of simpler parts.
