Understanding the Fundamentals: Ball Valves and Butterfly Valves
Ball Valve Design and Operation

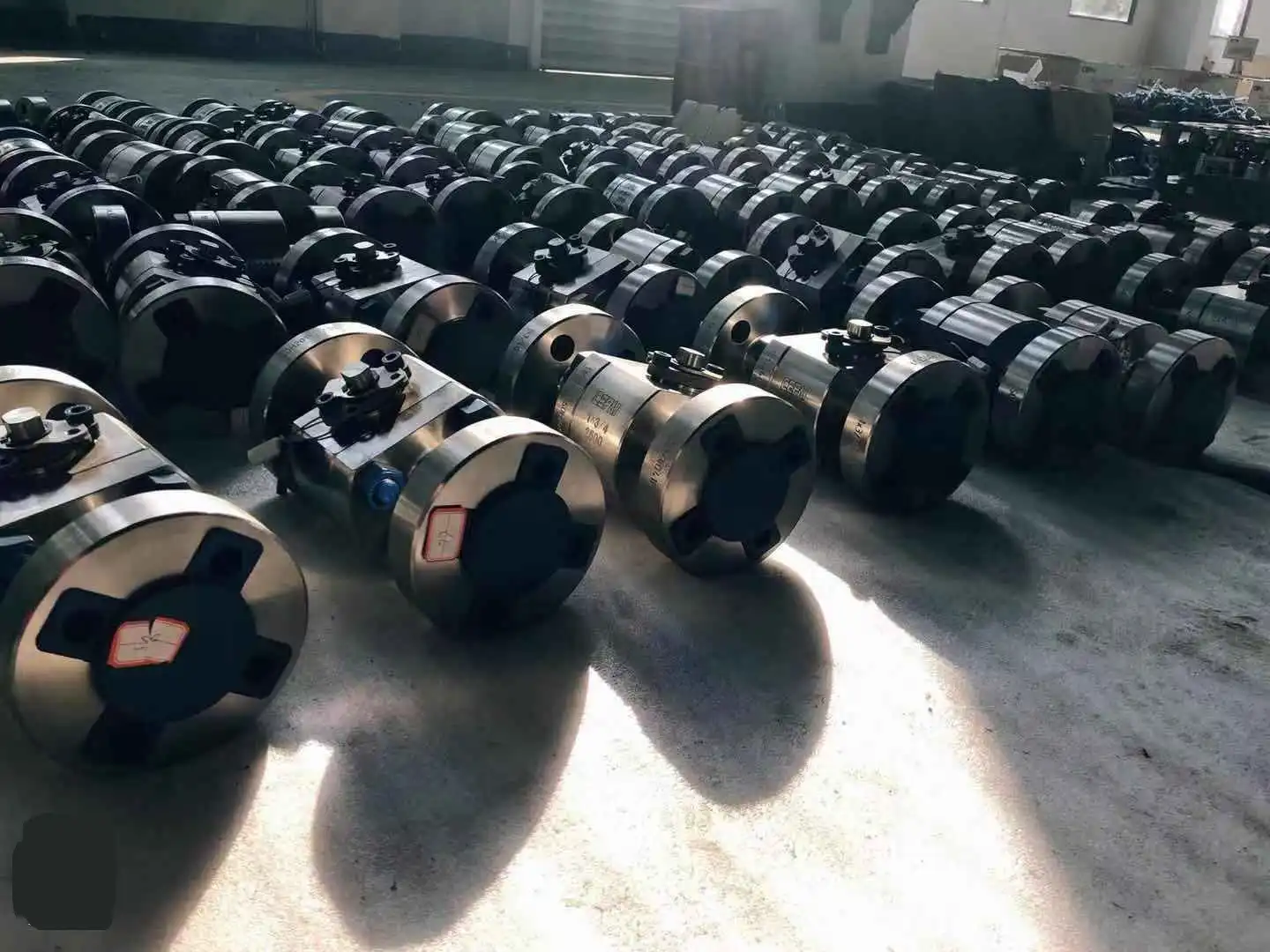

Ball valves are quarter-turn valves that utilize a spherical disc to control flow. The valve's core component is a ball-shaped disc with a bore through its center. When the valve is open, the bore aligns with the flow path, allowing fluid to pass through. Rotating the ball 90 degrees closes the valve, blocking the flow. This simple yet effective design provides excellent sealing properties and minimal pressure drop when fully open.
Modern ball valves often incorporate advanced materials like ceramic-coated balls or specialized alloys to enhance durability and performance in harsh environments. The sealing mechanism typically uses resilient seats made from materials such as PTFE or PEEK, ensuring tight shut-off even under high-pressure conditions.
Butterfly Valve Construction and Functionality
Butterfly valves consist of a disc-shaped closure element that rotates on a central shaft. When open, the disc is parallel to the flow, offering minimal obstruction. Rotating the disc 90 degrees closes the valve, with the disc perpendicular to the flow path. This design results in a compact valve body, making butterfly valves ideal for applications where space is limited.
Recent advancements in butterfly valve technology include the development of triple-offset designs, which provide improved sealing capabilities and reduced wear. Additionally, innovative seat materials and coatings have expanded the range of applications for butterfly valves, allowing them to handle more challenging media and operating conditions.
Key Components and Materials
Both valve types comprise several critical components. For ball valves, these include the ball, stem, body, seats, and actuator. Butterfly valves feature a disc, stem, seat, and body. Material selection plays a crucial role in valve performance and longevity. Common materials include stainless steel, carbon steel, and various alloys for metal components, while seat materials may include PTFE, PEEK, or elastomers, depending on the application requirements.
In recent years, there has been a trend towards using advanced composites and ceramic coatings to enhance wear resistance and reduce friction in both valve types. These innovations have significantly extended valve service life and improved performance in demanding applications.
Comparative Analysis: Ball Valves vs Butterfly Valves
Sealing Efficiency and Leak-Tightness
Ball valves generally offer superior sealing capabilities compared to traditional butterfly valves, especially in high-pressure applications. The spherical design of the ball provides a large sealing surface area, resulting in excellent shut-off performance. This makes ball valves particularly suitable for applications requiring tight shut-off or handling gases.
However, advancements in butterfly valve design, such as the introduction of triple-offset configurations, have significantly improved their sealing efficiency. These innovative designs can now achieve near-zero leakage rates, rivaling the performance of ball valves in many applications. Despite these improvements, ball valves still maintain an edge in extreme high-pressure scenarios.
Flow Characteristics and Pressure Drop
Butterfly valves typically offer lower pressure drop when fully open compared to ball valves. The disc-shaped closure element presents minimal obstruction to flow, resulting in reduced turbulence and pressure loss. This characteristic makes butterfly valves an excellent choice for applications where maintaining system pressure is critical.
Ball valves, while generally exhibiting higher pressure drop than butterfly valves, still provide good flow characteristics. The straight-through bore design allows for unobstructed flow when fully open. Recent developments in ball valve design, such as optimized bore shapes and advanced computational fluid dynamics modeling, have helped minimize pressure drop, narrowing the gap with butterfly valves in this aspect.
Size and Weight Considerations
Butterfly valves have a distinct advantage in terms of size and weight. Their compact design makes them ideal for installations where space is limited or weight restrictions apply. This characteristic is particularly beneficial in offshore applications or in areas with high valve density.
Ball valves, while generally larger and heavier than butterfly valves of equivalent size, offer advantages in terms of durability and versatility. The robust construction of ball valves makes them suitable for a wide range of pressures and temperatures. Recent innovations in materials and manufacturing techniques have led to the development of lighter ball valve designs, reducing the weight difference between the two valve types.
Applications and Industry-Specific Considerations
Oil and Gas Sector
In the oil and gas industry, both ball valves and butterfly valves find extensive use, each excelling in specific applications. Ball valves are preferred for high-pressure, high-temperature services, such as wellhead control, pipeline isolation, and process control in refineries. Their excellent sealing properties and ability to handle a wide range of pressures make them ideal for critical shut-off applications.
Butterfly valves are commonly used in lower-pressure applications within the oil and gas sector, such as tank farms, water injection systems, and cooling water circuits. Their compact design and good flow characteristics make them suitable for large-diameter pipelines where space and weight are concerns. As we approach 2025, we can expect to see increased use of specialized butterfly valve designs in more demanding oil and gas applications, thanks to ongoing improvements in materials and sealing technologies.

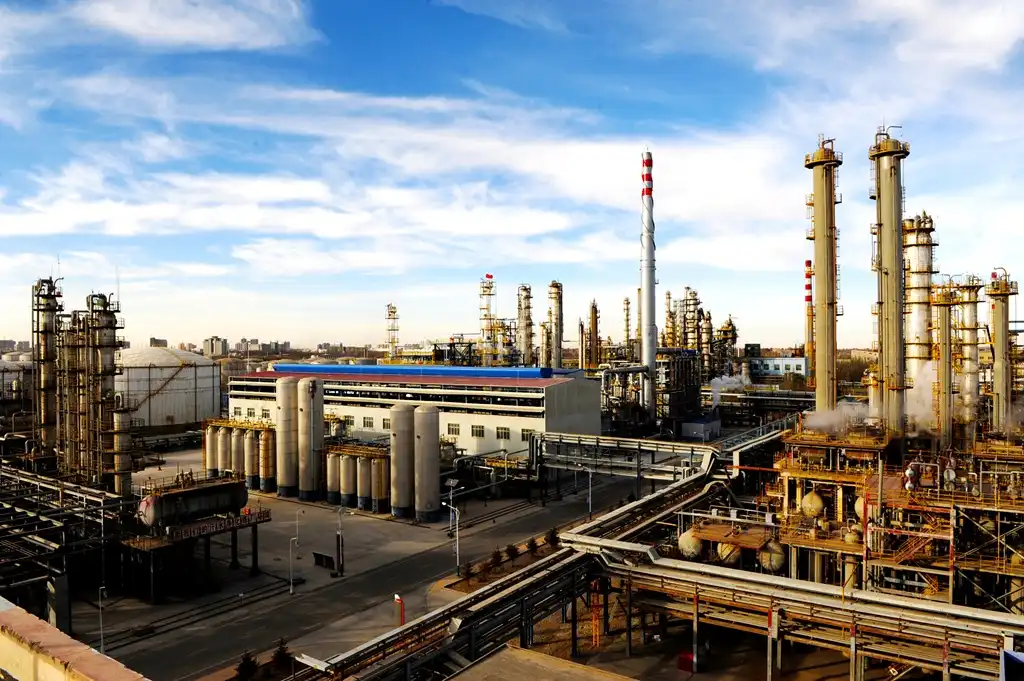

Chemical and Petrochemical Industries
In chemical and petrochemical processing, the choice between ball valves and butterfly valves often depends on the specific media being handled and the operating conditions. Ball valves are typically preferred for applications involving corrosive or abrasive fluids, as their robust construction and variety of available materials provide excellent resistance to chemical attack.
Butterfly valves find widespread use in chemical plants for applications such as tank blanketing, reactor isolation, and general flow control. Their ability to handle large volumes of flow with minimal pressure drop makes them ideal for bulk chemical transfer operations. As we look towards 2025, we can anticipate increased adoption of high-performance butterfly valves with specialized coatings and materials, expanding their applicability in more aggressive chemical environments.
Water and Wastewater Treatment
In water and wastewater treatment facilities, both valve types play important roles. Butterfly valves are widely used due to their cost-effectiveness, ease of operation, and suitability for large-diameter pipelines. They are commonly employed in pump isolation, flow control, and backflow prevention applications.
Ball valves are often chosen for critical shut-off applications in water treatment plants, particularly where tight sealing is required to prevent contamination. They are also used in chemical injection systems and high-pressure reverse osmosis units. As we approach 2025, we can expect to see increased integration of smart technologies in both valve types, enabling remote monitoring and predictive maintenance in water treatment facilities.
Conclusion
In 2025, selecting between ball valves and butterfly valves still hinges on the specific requirements of each application. Ball valves excel in high-pressure, tight shut-off scenarios, while butterfly valves offer advantages in terms of size, weight, and flow characteristics. Ongoing advancements in materials, design, and manufacturing techniques are narrowing the performance gap between these valve types, expanding their respective application ranges. For optimal valve selection, consider factors such as pressure, temperature, media properties, and space constraints. Consulting with valve experts and manufacturers can help ensure the most suitable choice for your specific needs in the evolving industrial landscape.
FAQs
Which valve type is better for cryogenic applications?
Ball valves are generally preferred for cryogenic applications due to their excellent sealing properties and ability to withstand extreme temperatures.
Can butterfly valves handle high-pressure applications?
While traditionally used in lower-pressure systems, advances in butterfly valve design, such as triple-offset configurations, have expanded their use in higher-pressure applications.
Are ball valves or butterfly valves more suitable for modulating control?
Butterfly valves typically offer better modulating control due to their linear flow characteristics, but specialized ball valve designs can also provide good modulating performance.
