Design and Operational Principles

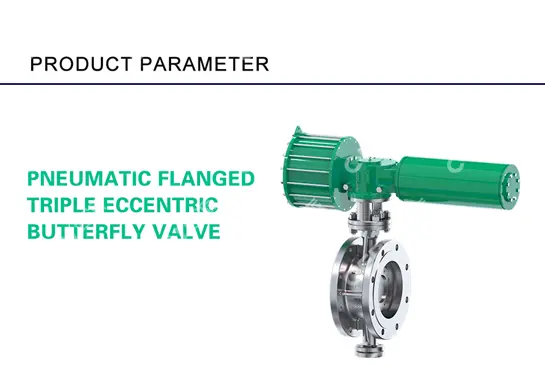

Triple Offset Valve Construction
Triple offset valves boast a sophisticated design that sets them apart from conventional butterfly valves. The term "triple offset" refers to three key design elements: the first offset places the shaft behind the disc's centerline, the second offset positions the shaft away from the pipe's centerline, and the third offset creates a conical sealing surface. This ingenious configuration results in a valve that operates with minimal friction and provides a tight seal even under extreme conditions. The sealing mechanism resembles that of a cone fitting precisely into a conic seat, ensuring zero leakage when closed. High-quality materials such as stainless steel, duplex stainless steel, or exotic alloys are often used in their construction, enhancing durability and corrosion resistance.
Ball Valve Mechanics
Ball valves, on the other hand, employ a spherical disc (the ball) with a bore through its center. When the valve is open, this bore aligns with the pipeline, allowing full flow. Rotating the ball 90 degrees closes the valve, blocking the flow. While this design is simple and effective for many applications, it has limitations in certain high-pressure or high-temperature scenarios. The sealing in ball valves typically relies on soft seats, which can degrade over time, especially in harsh environments. Additionally, the constant friction between the ball and the seats during operation can lead to wear and potential leakage points, unlike triple eccentric butterfly valves which offer improved sealing and durability in such conditions.
Comparative Flow Characteristics
The flow characteristics of triple offset valves and ball valves differ significantly. Triple offset valves offer excellent control over flow rates, making them ideal for throttling applications. Their design allows for precise adjustments, enabling operators to fine-tune flow with greater accuracy. In contrast, ball valves are primarily designed for on-off service. While some ball valves are modified for throttling, they generally don't match the precision of triple offset valves in this regard. The streamlined design of triple offset valves also results in lower pressure drops across the valve, contributing to improved overall system efficiency.
Performance in Extreme Conditions
High-Pressure Applications
In high-pressure environments, triple offset valves demonstrate superior performance compared to ball valves. The unique sealing mechanism of triple offset valves, which utilizes metal-to-metal contact, maintains its integrity under extreme pressures. This design allows for consistent, tight shutoff even when dealing with pressures exceeding 1500 psi. The conical sealing surface distributes the pressure evenly, reducing wear and extending the valve's lifespan. Ball valves, while capable of handling high pressures in certain configurations, may struggle to maintain a reliable seal over time, especially if soft seats are used. The potential for seat deformation or damage in ball valves increases with pressure, potentially leading to leakage and more frequent maintenance requirements.
Temperature Resistance
Triple eccentric butterfly valves excel in high-temperature applications, making them invaluable in industries like petrochemical processing and power generation. Their metal-to-metal sealing mechanism remains effective across a wide temperature range, from cryogenic conditions to temperatures exceeding 1000°F (538°C). This temperature resistance is crucial in processes involving steam, hot gases, or thermal cycling. Ball valves, particularly those with soft seats, have more limited temperature ranges. While metal-seated ball valves exist for high-temperature applications, they often lack the precise control and zero-leakage capabilities of triple eccentric butterfly valves under extreme thermal conditions.
Resistance to Abrasive Media
When handling abrasive or particulate-laden fluids, triple offset valves demonstrate remarkable resilience. The valve's design minimizes contact between the disc and the seat during operation, reducing wear caused by abrasive media. Additionally, the metal-to-metal sealing surfaces can be hardened or coated to enhance their resistance to erosion. Ball valves, with their rotating spherical disc, are more susceptible to damage from abrasive particles. The constant contact between the ball and the seats can lead to scoring, erosion, and eventual leakage when dealing with harsh media. This vulnerability often results in more frequent maintenance and replacement cycles for ball valves in abrasive service.
Long-term Cost and Maintenance Considerations
Initial Investment vs. Lifecycle Costs
When evaluating the financial aspects of valve selection, it's crucial to consider both initial costs and long-term expenses. Triple offset valves typically have a higher upfront cost compared to ball valves due to their more complex design and precision manufacturing requirements. However, this initial investment often translates into significant savings over the valve's lifecycle. The durability and reliability of triple offset valves mean fewer replacements, less downtime, and reduced maintenance expenses. Ball valves, while generally less expensive initially, may incur higher costs over time, especially in demanding applications where frequent maintenance or replacement is necessary. For critical systems where reliability is paramount, the long-term cost benefits of triple offset valves can far outweigh their higher purchase price.
Maintenance Requirements and Downtime
Maintenance needs and associated downtime represent crucial factors in valve selection, particularly for continuous processes where interruptions can be costly. Triple eccentric butterfly valves boast minimal maintenance requirements due to their robust construction and low-friction operation. The absence of soft seats eliminates a common point of failure, and the metal-to-metal sealing surfaces maintain their integrity over extended periods. This translates to longer intervals between maintenance cycles and shorter downtimes when service is required. Ball valves, especially in challenging environments, may necessitate more frequent maintenance to replace worn seats or address leakage issues. The cumulative effect of these maintenance events can lead to significant operational disruptions and increased labor costs over the valve's lifespan.
Environmental Impact and Regulatory Compliance
In an era of increasing environmental awareness and stringent regulations, the choice between triple offset valves and ball valves can have significant implications. Triple offset valves' superior sealing capabilities contribute to reduced emissions and improved fugitive emission control. This characteristic is particularly valuable in industries subject to strict environmental regulations, such as petrochemical processing or natural gas handling. The ability to maintain zero leakage over extended periods not only ensures regulatory compliance but also minimizes product loss and environmental impact. While high-quality ball valves can also offer good sealing, they may struggle to match the long-term emission control performance of triple offset valves, especially in severe service conditions. As environmental standards continue to evolve, the inherent advantages of triple offset valves in this regard become increasingly relevant for forward-thinking organizations.
Conclusion
The decision to choose triple eccentric butterfly valves over ball valves hinges on a comprehensive evaluation of performance requirements, operational conditions, and long-term cost considerations. Triple eccentric butterfly valves offer superior sealing, exceptional performance in extreme environments, and reduced maintenance needs, making them an ideal choice for critical applications in industries where reliability and precision are paramount. While the initial investment may be higher, the long-term benefits in terms of operational efficiency, reduced downtime, and environmental compliance often justify the choice. As industrial processes continue to evolve and face more demanding conditions, the advantages of triple eccentric butterfly valves become increasingly apparent, solidifying their position as a preferred solution for challenging valve applications.
