Understanding the Mechanics of Dual Plate Check Valves
Design Features and Components

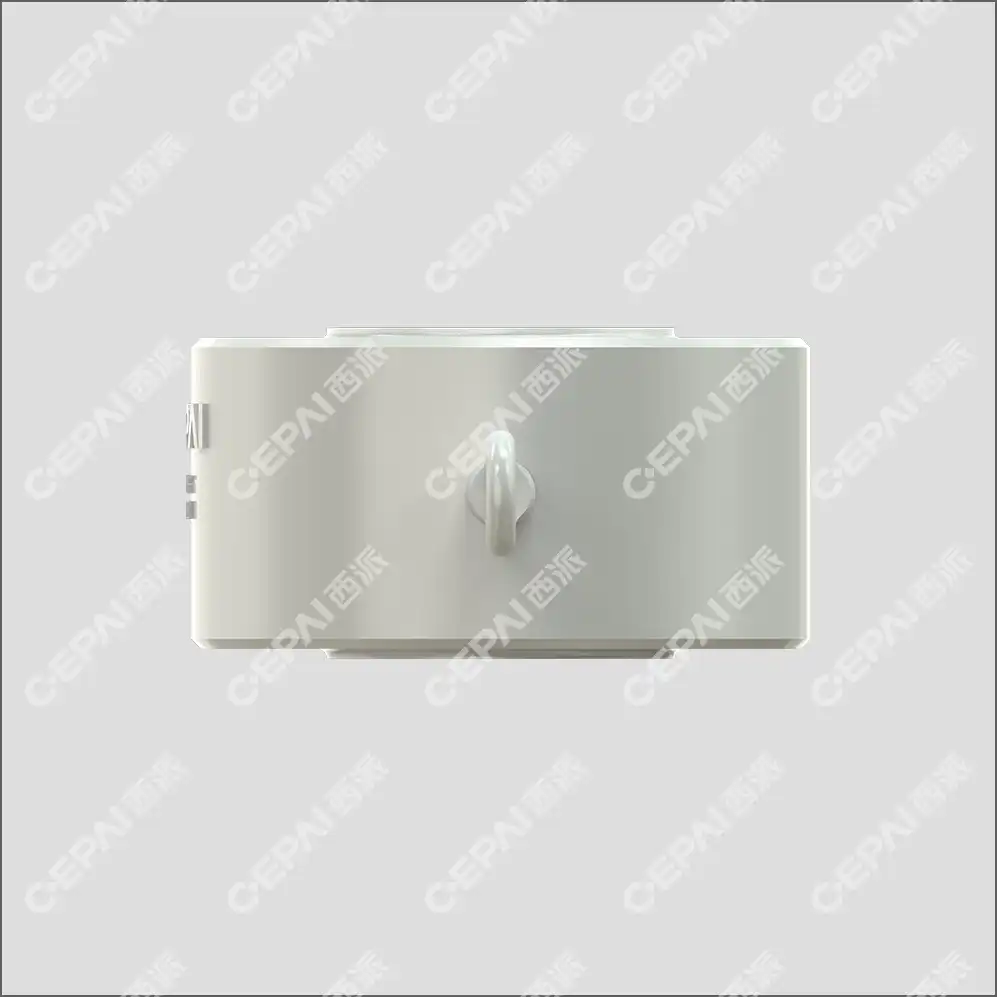

Dual plate check valves boast a unique design that sets them apart from traditional check valves. The valve body houses two semicircular plates, typically made of durable materials like stainless steel or carbon steel. These plates are connected to a central hinge pin, allowing them to swing open and closed. Spring mechanisms are often incorporated to enhance the closing action, ensuring a quick response to flow changes. The valve's seating area is carefully engineered to provide a tight seal when closed, preventing any backflow.
Operating Principles
The operation of a dual plate check valve relies on the pressure differential between the upstream and downstream sides. When the flow pressure exceeds the spring tension and the weight of the plates, they swing open, allowing the medium to pass through. As soon as the flow stops or reverses, the plates quickly close, sealing off the reverse path. This rapid response time is one of the key advantages of dual plate check valves, making them ideal for applications where swift closure is crucial to prevent water hammer or system damage.
Material Selection and Performance
The choice of materials for dual plate check valves significantly impacts their performance and longevity. High-quality valves often feature bodies made of ductile iron, carbon steel, or stainless steel, depending on the application requirements. The plates and springs are typically constructed from corrosion-resistant materials to withstand harsh environments. Seat materials may include elastomers like EPDM or NBR for softer sealing, or metal-to-metal seats for high-temperature applications. This careful material selection ensures that dual plate check valves can maintain their integrity and functionality even in challenging industrial settings.
Applications and Benefits of Dual Check Valves
Industrial Uses
Dual check valves find extensive use across various industries due to their versatility and reliability. In the oil and gas sector, they play a crucial role in preventing backflow in pipelines, wellheads, and processing equipment. Water treatment plants rely on these valves to maintain the directional flow of chemicals and prevent contamination. In HVAC systems, dual plate check valves help regulate the flow of refrigerants and protect compressors from reverse flow damage. Their compact design makes them particularly suitable for installations where space is at a premium, such as offshore platforms or crowded industrial facilities.
Advantages Over Other Valve Types
Compared to other check valve designs, dual plate check valves offer several distinct advantages. Their low-pressure drop characteristics result in improved system efficiency, reducing energy consumption and operational costs. The split-disc design allows for a larger flow area, enabling higher flow rates than single-disc alternatives. Additionally, the dual plate configuration provides better stability and reduces the risk of disc flutter, which can lead to premature wear in other valve types. The quick closing action of dual plate check valves also makes them superior in preventing water hammer effects, a common issue in fluid systems.
Maintenance and Longevity
One of the most appealing aspects of dual plate check valves is their low maintenance requirements. The simple design, with fewer moving parts compared to other valve types, reduces the likelihood of mechanical failures. Regular inspections and occasional cleaning are typically sufficient to keep these valves in optimal condition. When maintenance is necessary, the modular design of many dual plate check valves allows for easy disassembly and part replacement, minimizing downtime. With proper care and installation, these valves can provide reliable service for many years, making them a cost-effective choice for long-term operations.
Selecting the Right Dual Check Valve for Your Application
Sizing and Pressure Considerations
Choosing the appropriate dual plate check valve begins with accurate sizing and pressure calculations. Engineers must consider factors such as flow rate, pressure drop, and system pressure to select a valve that can handle the specific requirements of the application. Oversizing can lead to insufficient backpressure for proper closure, while undersizing may result in excessive pressure drop and reduced efficiency. It's crucial to work with reputable manufacturers who can provide detailed performance curves and technical support to ensure the selected valve meets both current needs and future expansion plans.
Material Compatibility
The compatibility of valve materials with the process fluid is paramount to ensuring long-term performance and safety. Corrosive media may require valves constructed from special alloys or with protective coatings. High-temperature applications might necessitate the use of metal-to-metal seats instead of elastomeric ones. It's essential to consider not just the normal operating conditions but also any potential upset scenarios that could expose the valve to extreme temperatures or pressures. Consulting with valve specialists and reviewing material compatibility charts can help in making informed decisions about the most suitable materials for specific applications.
Installation and Maintenance Best Practices
Proper installation is critical for the optimal performance of dual plate check valves. They should be installed in horizontal pipes with the hinge pin vertical to ensure even wear on both plates. Sufficient straight pipe runs upstream and downstream of the valve are necessary to maintain stable flow patterns. Regular maintenance schedules should include visual inspections for signs of wear or damage, checking for proper plate movement, and ensuring the sealing surfaces remain clean and free from debris. Some advanced dual plate check valves come equipped with position indicators or monitoring systems, allowing for real-time performance tracking and predictive maintenance planning.
Conclusion
Dual check valves, particularly dual plate check valves, play a vital role in maintaining the integrity and efficiency of various industrial systems. Their unique design offers superior performance in preventing backflow, reducing pressure drop, and ensuring quick closure. From oil and gas operations to water treatment facilities, these valves prove indispensable in protecting equipment and optimizing flow control. By understanding their mechanics, applications, and selection criteria, engineers and facility managers can leverage the full potential of dual check valves to enhance their operations' safety, reliability, and efficiency.
