Understanding the Design Principles of Double and Triple Eccentric Butterfly Valves
Basic Structure and Operation of Butterfly Valves
Butterfly valves are rotary motion valves used to regulate fluid flow in various industries. They consist of a disc that rotates on a shaft to open or close the flow passage. The simplicity of their design makes them compact and lightweight, ideal for applications where space is limited. In traditional concentric butterfly valves, the disc rotates around a central axis, perpendicular to the flow. However, double and triple eccentric designs introduce offsets that enhance performance and reliability.

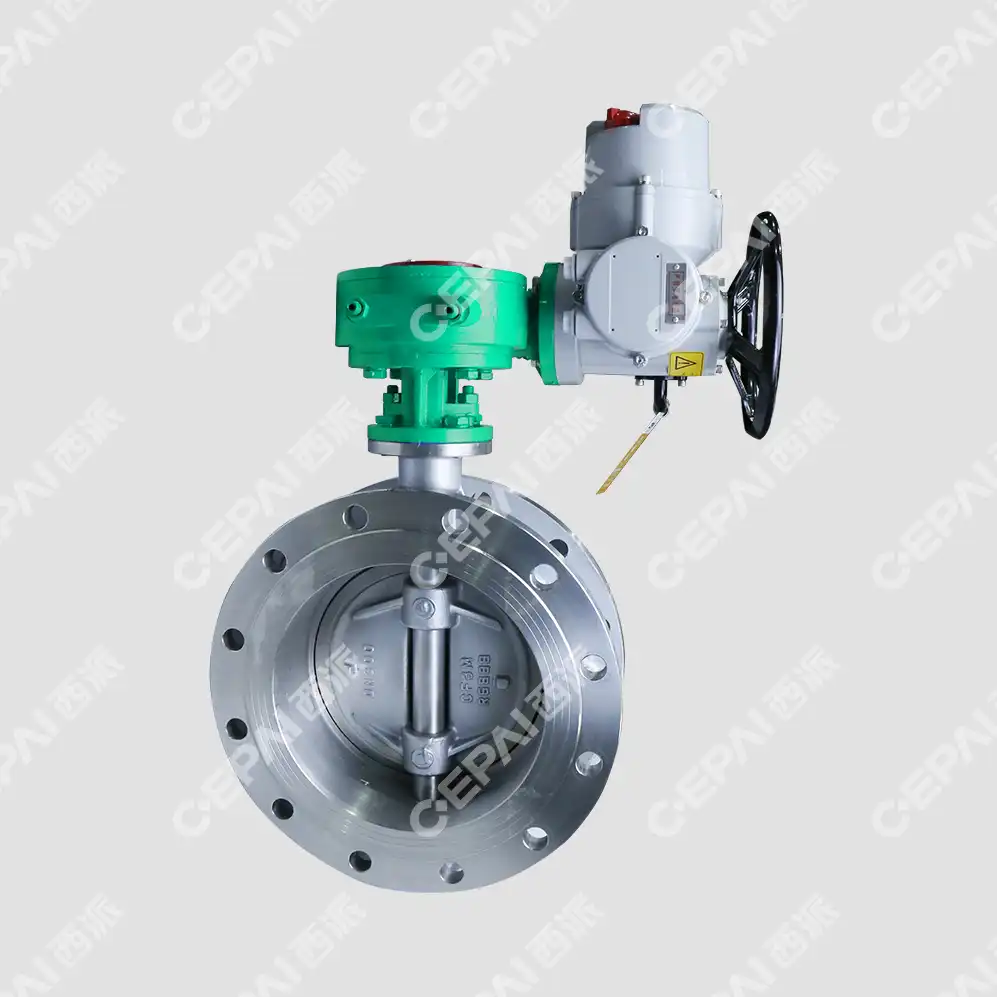

Double Eccentric Butterfly Valve Design Features
Double eccentric butterfly valves represent an evolution from concentric designs. The first eccentricity moves the shaft away from the centerline of the pipe, reducing friction during operation. The second eccentricity offsets the disc from the centerline of the seat, creating a cam-like action. This dual offset configuration allows the disc to lift away from the seat during opening, minimizing wear and extending the valve's service life. The sealing mechanism in double eccentric valves typically involves a resilient seat that conforms to the disc when closed, providing reliable shutoff in moderate pressure applications.
Triple Eccentric Butterfly Valve Design Innovations
Triple eccentric butterfly valves introduce a third offset, which inclines the seat cone axis relative to the pipe centerline. This additional eccentricity results in a spiral motion of the disc as it closes, creating a non-rubbing, friction-free sealing action. The cone-shaped closure eliminates sliding contact between the seat and disc, significantly reducing wear and enhancing sealing performance. The metal-to-metal seating design common in triple eccentric valves allows for their use in extreme temperature and pressure conditions where resilient seats might fail. This innovative design makes triple eccentric butterfly valves suitable for critical applications in industries such as oil and gas, power generation, and chemical processing.
Performance Comparison: Double Eccentric vs. Triple Eccentric Butterfly Valves
Sealing Efficiency and Leak-Tightness
When it comes to sealing efficiency, triple eccentric butterfly valves generally outperform their double eccentric counterparts. The unique geometry of triple eccentric valves allows for a more precise and consistent seal, especially under high-pressure conditions. The non-rubbing closure mechanism minimizes wear on sealing surfaces, maintaining leak-tightness over extended periods. Double eccentric valves, while effective in many applications, may experience more seal degradation over time due to the sliding contact between the disc and seat during operation. In critical processes where even minor leakage can be problematic, triple eccentric designs often prove superior.
Pressure and Temperature Handling Capabilities
Triple eccentric butterfly valves excel in high-pressure and high-temperature environments. Their metal-to-metal seating arrangement allows them to withstand extreme conditions that would compromise the integrity of soft-seated valves. This robust construction makes them ideal for steam systems, cryogenic applications, and processes involving corrosive media. Double eccentric valves, while capable of handling moderate pressures and temperatures, may require more frequent maintenance or replacement in severe service conditions. The choice between double and triple eccentric designs often hinges on the specific pressure and temperature requirements of the application.
Operational Torque and Control Characteristics
The operational torque required to actuate butterfly valves is a crucial consideration in valve selection. Triple eccentric butterfly valves typically require lower operating torque compared to double eccentric designs, especially during initial opening and final closing phases. This reduced torque requirement translates to smaller, more energy-efficient actuators and improved control precision. The smooth, cam-like action of triple eccentric valves also contributes to more stable flow characteristics, making them particularly suitable for modulating control applications. Double eccentric valves, while offering good control capabilities, may exhibit slightly higher torque demands and potential for flow turbulence in certain operating ranges.
Applications and Selection Criteria for Double and Triple Eccentric Butterfly Valves
Industry-Specific Use Cases
The selection between double and triple eccentric butterfly valves often depends on the specific requirements of different industries. In the oil and gas sector, triple eccentric valves are frequently chosen for their ability to handle high pressures and temperatures in pipeline systems and refinery processes. Power generation plants utilize these valves in steam systems and feedwater lines where tight shutoff and reliability are paramount. Chemical processing facilities benefit from the corrosion resistance and precise flow control offered by triple eccentric designs. Double eccentric valves find widespread use in water treatment plants, HVAC systems, and general industrial applications where moderate pressure and temperature conditions prevail. Understanding the operational demands of each industry is crucial in determining the most suitable valve type.
Factors Influencing Valve Selection
Several factors come into play when choosing between double and triple eccentric butterfly valves. Process conditions, including pressure, temperature, and media characteristics, are primary considerations. The required degree of leak-tightness and frequency of operation also influence the decision. Life cycle costs, encompassing initial investment, maintenance requirements, and potential downtime, should be evaluated. Environmental factors, such as exposure to corrosive atmospheres or extreme weather conditions, may favor one design over the other. Additionally, space constraints and weight limitations in certain installations can impact the choice. A thorough analysis of these factors, often in consultation with valve experts, ensures the selection of the most appropriate valve for each specific application.
Cost-Benefit Analysis and Long-Term Performance
While triple eccentric butterfly valves generally come with a higher initial cost compared to double eccentric models, their long-term benefits often justify the investment. The superior sealing performance and durability of triple eccentric valves can lead to reduced maintenance costs and improved process efficiency over time. In critical applications where valve failure could result in significant downtime or safety risks, the reliability of triple eccentric designs provides added value. Double eccentric valves, however, remain a cost-effective solution for less demanding applications where their performance characteristics suffice. Conducting a comprehensive cost-benefit analysis, taking into account both immediate expenses and long-term operational considerations, helps in making an informed decision that balances performance requirements with budgetary constraints.
Conclusion
The choice between double eccentric and triple eccentric butterfly valves hinges on the specific demands of each application. While double eccentric valves offer reliable performance in moderate conditions, triple eccentric designs excel in challenging environments requiring superior sealing and durability. Understanding the unique features and benefits of each type allows engineers and facility managers to make informed decisions, optimizing their fluid control systems for efficiency, reliability, and long-term cost-effectiveness. As technology advances, both valve types continue to evolve, promising even greater performance and versatility in future industrial applications.
