Understanding Butterfly Valve Designs: Concentric vs. Eccentric
Concentric Butterfly Valve: Features and Applications
Concentric butterfly valves are characterized by their straightforward design and symmetrical construction. The valve disc is positioned at the center of the pipe bore and rotates around a fixed axis. This configuration allows for a compact and lightweight valve body, making it ideal for applications where space is limited. Concentric valves are typically used in low to medium-pressure systems and are well-suited for handling clean fluids, gases, and slurries.
One of the primary advantages of concentric butterfly valves is their cost-effectiveness. The simple design requires fewer components, resulting in lower manufacturing costs and easier maintenance. Additionally, the symmetrical disc arrangement allows for bidirectional flow, providing flexibility in installation and operation. However, concentric valves may experience higher torque requirements during opening and closing, especially in high-pressure scenarios.
Eccentric Butterfly Valve: Improved Sealing and Performance
Eccentric butterfly valves represent an evolution in valve design, addressing some of the limitations of concentric models. The key feature of eccentric valves is the off-center positioning of the disc and shaft. This configuration allows the disc to cam away from the seat during the opening process, reducing friction and wear on the sealing components. Eccentric valves are further categorized into single, double, and triple eccentric designs, each offering progressively improved performance characteristics.
The eccentric design offers several advantages over its concentric counterpart. The reduced contact between the disc and seat during operation results in lower torque requirements, smoother actuation, and extended seal life. This makes eccentric valves particularly suitable for applications involving higher pressures, temperatures, and more challenging media. The improved sealing capabilities also contribute to better shut-off performance and reduced leakage rates.

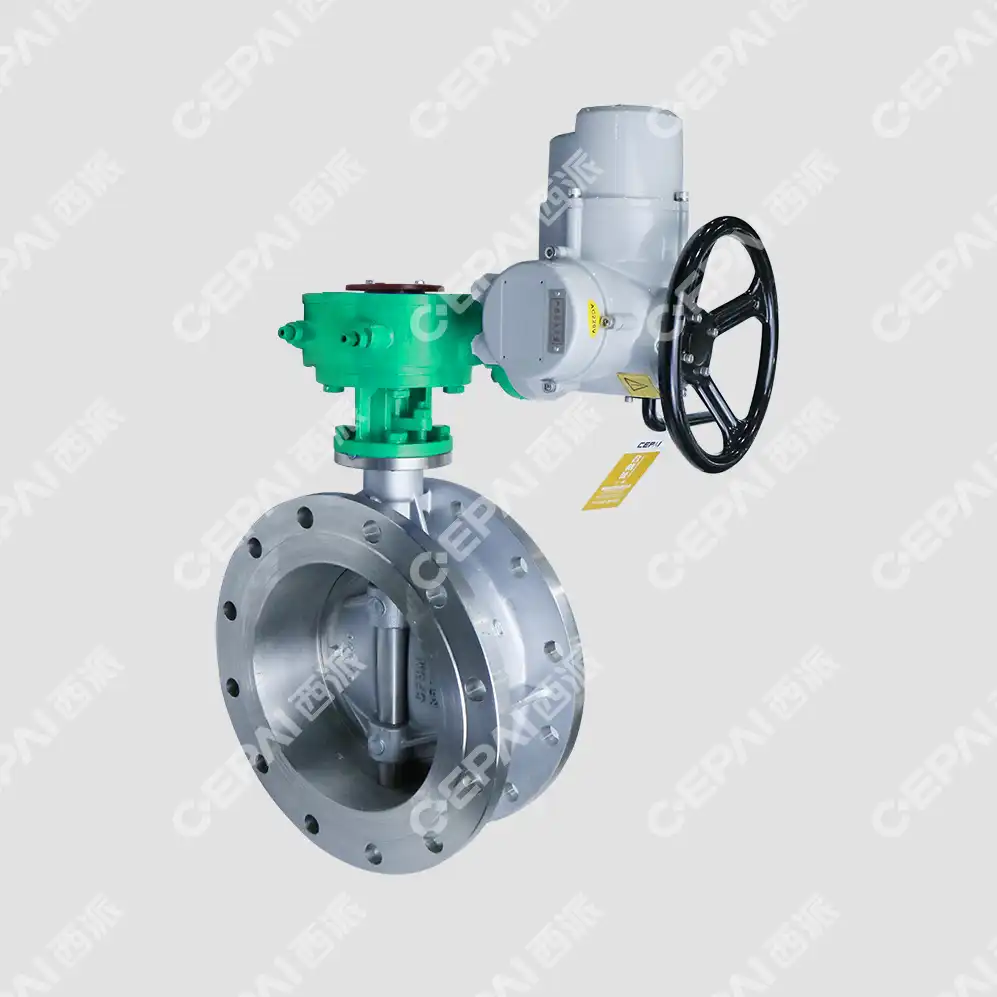

Triple Eccentric Butterfly Valve: Advanced Sealing Technology
Among eccentric butterfly valve designs, the triple eccentric butterfly valve represents the pinnacle of performance and reliability. This sophisticated valve incorporates three levels of eccentricity: the shaft is offset from the centerline of the pipe and disc, the disc is offset from the shaft, and the seat cone axis is inclined from the pipe centerline. This complex geometry allows for a near-frictionless opening and closing motion, minimizing wear and extending the valve's service life.
Triple eccentric butterfly valves excel in critical applications where tight shut-off, minimal maintenance, and long-term reliability are paramount. They are commonly used in power generation, oil and gas processing, and chemical industries, where they handle high-pressure steam, corrosive fluids, and extreme temperature variations. The advanced sealing mechanism of triple eccentric valves ensures zero leakage in both directions, making them ideal for isolation and control functions in demanding industrial processes.
Performance Comparison: Concentric vs. Eccentric Butterfly Valves
Sealing Efficiency and Leakage Rates
When comparing concentric and eccentric butterfly valves, sealing efficiency is a critical factor to consider. Concentric valves rely on the compression of an elastomeric seat against the disc to create a seal. While effective in low-pressure applications, this design may struggle to maintain a tight seal under high-pressure conditions or with certain types of media. Eccentric valves, particularly triple eccentric designs, offer superior sealing capabilities due to their unique geometry and metal-to-metal seating arrangement.
The triple eccentric butterfly valve stands out in terms of leakage prevention. Its inclined and offset seating surfaces create a camming action that results in a tight, bubble-tight seal when closed. This design allows for bidirectional sealing and can maintain its integrity even under high-pressure differentials. In contrast, concentric valves may experience increased leakage rates as pressure increases or as the elastomeric seat wears over time.
Torque Requirements and Actuation
Torque requirements play a significant role in valve selection and operation. Concentric butterfly valves typically require higher torque to overcome the friction between the disc and seat during opening and closing. This can lead to increased wear on sealing components and may necessitate larger actuators, potentially increasing overall system costs. Eccentric valves, including triple eccentric designs, offer reduced torque requirements due to their cam-like action during operation.
The triple eccentric butterfly valve excels in this aspect, requiring minimal torque for actuation. The near-frictionless movement of the disc away from the seat during opening reduces wear and extends the life of sealing components. This low-torque operation translates to smaller actuator sizes, energy savings, and improved control precision in automated systems. For applications requiring frequent cycling or precise flow control, the reduced torque characteristics of eccentric and triple eccentric valves offer significant advantages over concentric designs.
Pressure and Temperature Ratings
Pressure and temperature ratings are crucial considerations when selecting butterfly valves for specific applications. Concentric butterfly valves are generally limited to lower pressure ranges, typically up to ANSI Class 300 (50 bar). Their reliance on elastomeric seats also restricts their use in high-temperature environments. Eccentric valves, particularly triple eccentric designs, offer significantly higher pressure and temperature capabilities.
Triple eccentric butterfly valves can handle pressures up to ANSI Class 900 (150 bar) and beyond, depending on the specific design and materials used. Their metal-to-metal seating arrangement allows for operation in extreme temperature ranges, from cryogenic applications to high-temperature steam services exceeding 1000°F (538°C). This versatility makes triple eccentric butterfly valves suitable for a wide range of industrial applications where concentric valves would be inadequate.
Selecting the Right Butterfly Valve for Your Application
Application-Specific Considerations
Choosing between concentric and eccentric butterfly valves requires a thorough understanding of the specific application requirements. Factors to consider include the type of media being handled, operating pressure and temperature ranges, required flow characteristics, and frequency of operation. Concentric valves may be sufficient for general-purpose applications involving clean fluids and moderate pressures. However, for more demanding scenarios, eccentric or triple eccentric butterfly valves often prove to be the superior choice.
Industries such as oil and gas, power generation, and chemical processing frequently opt for triple eccentric butterfly valves due to their ability to handle extreme conditions. These valves excel in applications involving high-pressure steam, corrosive chemicals, and abrasive slurries. Their robust design and excellent sealing properties make them ideal for critical isolation and control functions where reliability and safety are paramount.
Life Cycle Cost Analysis
When evaluating butterfly valve options, it's essential to consider the total life cycle cost rather than just the initial purchase price. While concentric valves may have a lower upfront cost, their limitations in high-pressure or high-cycle applications can lead to increased maintenance expenses and potential process downtime. Eccentric and triple eccentric butterfly valves, though initially more expensive, often provide long-term cost savings through extended service life, reduced maintenance requirements, and improved process efficiency.
The triple eccentric butterfly valve, in particular, offers significant advantages in terms of longevity and reliability. Its low-wear design and superior sealing capabilities translate to fewer maintenance interventions and reduced potential for leakage-related issues. For critical applications where valve failure could result in substantial financial losses or safety risks, the investment in a high-performance triple eccentric valve is often justified by its long-term benefits and enhanced operational security.
Future-Proofing Your Valve Selection
As industrial processes evolve and environmental regulations become more stringent, selecting a butterfly valve that can adapt to future requirements is crucial. Triple eccentric butterfly valves offer a level of versatility and performance that makes them well-suited for evolving operational needs. Their ability to handle a wide range of pressures, temperatures, and media types provides flexibility for process changes or upgrades without necessitating valve replacement.
Additionally, the superior sealing capabilities of triple eccentric valves align with increasing demands for emission control and process efficiency. As industries strive to reduce fugitive emissions and minimize product loss, the near-zero leakage rates achievable with triple eccentric designs become increasingly valuable. By choosing a high-performance valve solution like the triple eccentric butterfly valve, operators can ensure their systems are equipped to meet both current and future operational challenges.
Conclusion
In conclusion, the choice between concentric and eccentric butterfly valves depends on the specific requirements of your application. Concentric valves offer a cost-effective solution for low to medium-pressure systems handling clean fluids. However, for demanding industrial applications requiring superior sealing, high-pressure capabilities, and long-term reliability, eccentric designs, particularly triple eccentric butterfly valves, prove to be the superior choice. Their advanced design features, including near-zero leakage, low torque requirements, and ability to handle extreme conditions, make them invaluable in critical processes across various industries.
