Design and Operational Principles of Triple Eccentric Butterfly Valves
Eccentric Offset Design
The triple eccentric butterfly valve's design is a marvel of engineering, incorporating three distinct offsets that set it apart from traditional butterfly valves. The first offset positions the stem away from the disc's centerline, while the second offset places the stem behind the sealing surface. The third offset creates a conical sealing surface, resulting in a cam-like action during operation. This ingenious configuration allows the disc to lift away from the seat during opening, reducing friction and wear on the sealing components.
Sealing Mechanism
The sealing mechanism of triple eccentric butterfly valves is a key factor in their superior performance. Unlike conventional butterfly valves that rely on interference fit for sealing, triple eccentric valves utilize a non-rubbing, torque-seated design. This approach ensures a tight seal without excessive wear on the seating surfaces. The valve's disc makes contact with the seat only at the final moments of closure, creating a metal-to-metal seal that can withstand high pressures and temperatures. This design also allows for the use of various seat materials, including metal, elastomer, and hybrid options, to suit different application requirements.
Actuation and Control

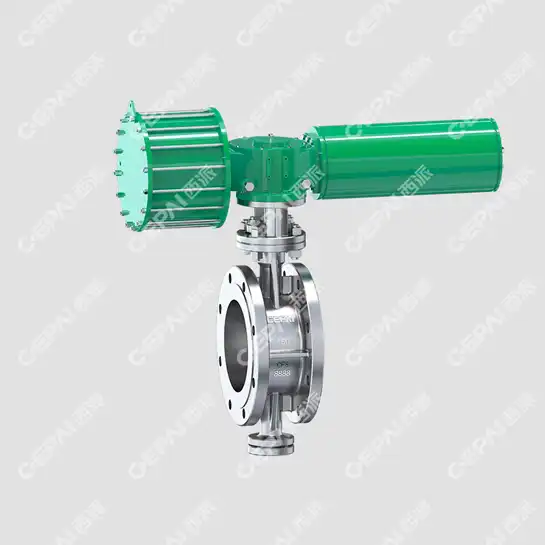

Triple eccentric butterfly valves can be equipped with various actuation systems to meet diverse operational needs. Manual operation through handwheels or levers is common for smaller valves or in applications where frequent adjustments are unnecessary. For automated control, pneumatic, hydraulic, or electric actuators can be integrated with the valve. These actuators enable precise flow regulation and can be incorporated into advanced control systems for remote operation. The valve's design allows for smooth operation with minimal torque requirements, making it suitable for both on-off and modulating service in challenging industrial environments.
Industrial Applications of Triple Eccentric Butterfly Valves
Oil and Gas Industry
In the oil and gas sector, triple eccentric butterfly valves play a crucial role in various processes. They are extensively used in pipelines for crude oil and natural gas transportation, where their ability to provide tight shut-off and operate under high pressures is invaluable. These valves are also employed in refineries for controlling the flow of hydrocarbons and other process fluids. Their resistance to corrosive media and high-temperature capabilities make them ideal for use in challenging refinery environments. Additionally, triple eccentric butterfly valves find applications in offshore platforms and subsea installations, where reliability and low maintenance requirements are paramount.
Power Generation
The power generation industry relies heavily on triple eccentric butterfly valves for efficient and safe operations. These valves are used in various systems within power plants, including steam lines, feedwater systems, and cooling water circuits. Their ability to handle high-temperature steam and provide precise flow control makes them indispensable in thermal power plants. In nuclear power facilities, triple eccentric butterfly valves are often chosen for their reliability and ability to meet stringent safety standards. The valves' low-torque operation and compatibility with various actuators make them suitable for both main steam isolation and auxiliary systems in power generation applications.
Water and Wastewater Treatment
Triple eccentric butterfly valves have found widespread adoption in water and wastewater treatment facilities. Their corrosion-resistant properties and ability to handle large volumes of water make them ideal for use in intake structures, distribution systems, and treatment processes. These valves are often employed in pump discharge lines, filter systems, and chemical injection points. The valves' tight shut-off capabilities help prevent backflow and cross-contamination in water treatment plants. In desalination facilities, triple eccentric butterfly valves are used to control the flow of seawater and brine, where their resistance to saltwater corrosion is particularly valuable.
Advantages and Considerations for Triple Eccentric Butterfly Valve Selection
Performance Benefits
Triple eccentric butterfly valves offer numerous performance advantages that make them a preferred choice in many industrial applications. Their unique design allows for excellent sealing capabilities, even under high-pressure conditions, resulting in minimal leakage and improved process efficiency. The non-rubbing sealing mechanism reduces wear on valve components, leading to extended service life and reduced maintenance requirements. These valves also provide a full bore passage when fully open, minimizing pressure drop and allowing for high flow rates. The ability to operate across a wide range of temperatures and pressures further enhances their versatility, making them suitable for use with various media, including gases, liquids, and slurries.
Material Selection
Choosing the appropriate materials for triple eccentric butterfly valves is crucial for ensuring optimal performance and longevity in specific applications. The valve body is typically constructed from durable materials such as carbon steel, stainless steel, or specialized alloys to withstand harsh operating conditions. The disc material is selected based on factors such as corrosion resistance, temperature requirements, and compatibility with the process media. Common disc materials include stainless steel, nickel alloys, and titanium. Seat materials play a critical role in sealing performance and can range from metal seats for high-temperature applications to elastomeric or PTFE seats for improved chemical resistance. Careful consideration of material selection ensures that the valve can withstand the specific challenges of its intended application.
Maintenance and Lifecycle Considerations
While triple eccentric butterfly valves are known for their low maintenance requirements, proper care and attention are essential for maximizing their operational lifespan. Regular inspection of sealing surfaces, stem packing, and actuator components is recommended to identify and address potential issues before they escalate. The non-rubbing design of these valves reduces wear on sealing surfaces, but periodic checks for signs of erosion or corrosion are still necessary, especially in harsh environments. Proper lubrication of moving parts and adherence to manufacturer-recommended maintenance schedules can significantly extend the valve's service life. When selecting triple eccentric butterfly valves, considering factors such as ease of maintenance, availability of spare parts, and compatibility with existing maintenance procedures can help ensure long-term reliability and cost-effectiveness.
Conclusion
Triple eccentric butterfly valves have revolutionized flow control in numerous industries due to their exceptional performance, versatility, and reliability. Their unique design offers superior sealing, reduced wear, and the ability to handle challenging operating conditions. From oil and gas processing to power generation and water treatment, these valves continue to prove their worth in critical applications. As industries evolve and demand ever-higher standards of efficiency and safety, triple eccentric butterfly valves are poised to remain at the forefront of valve technology, offering innovative solutions for complex flow control challenges.
