Understanding the Mechanics of Pneumatic Butterfly Valves

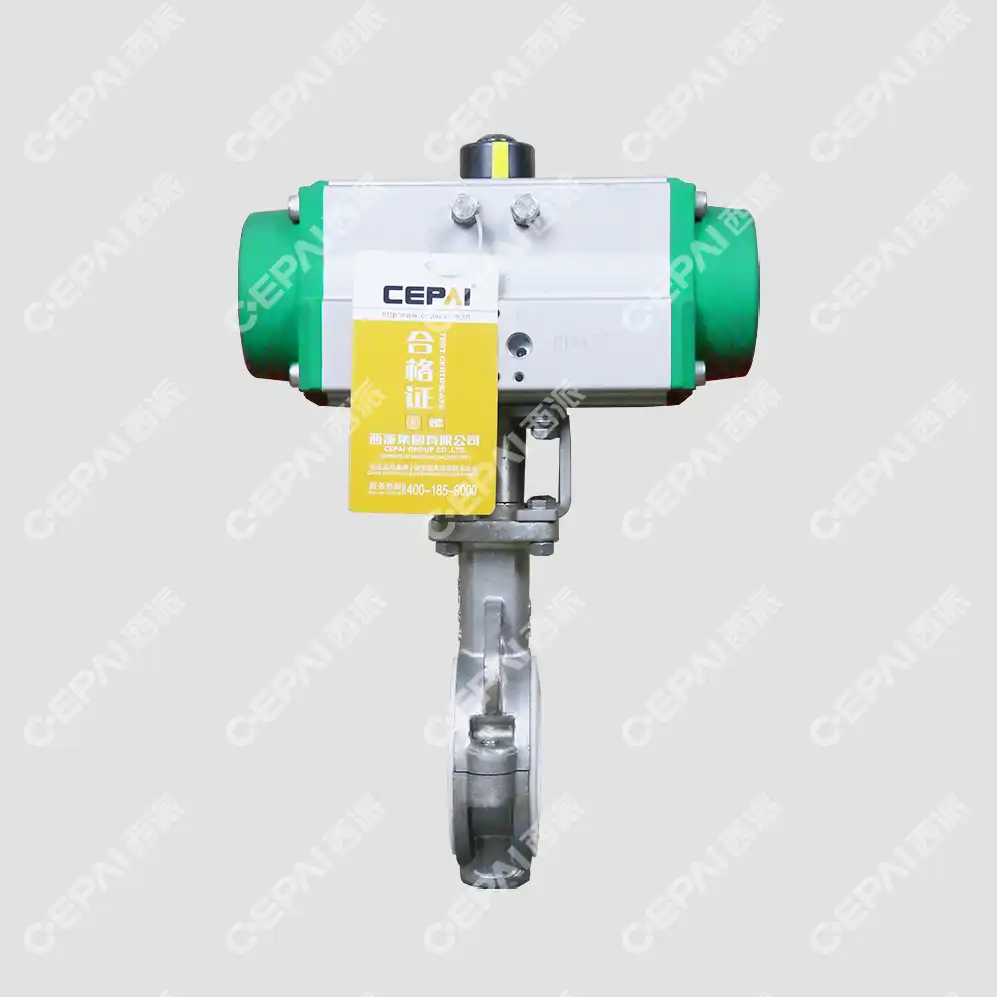

Basic Structure and Components
Pneumatic butterfly valves consist of several key components that work together to control fluid flow. The main body houses a disc-shaped closure element, which rotates on a central shaft. This disc acts as the primary flow control mechanism, with its position determining the amount of fluid that can pass through the valve. The valve body also includes a seat, typically made of resilient materials like rubber or PTFE, which ensures a tight seal when the valve is closed.
The pneumatic actuator, mounted on top of the valve body, is responsible for controlling the disc's movement. It contains a piston or diaphragm that responds to changes in air pressure, translating this motion into the rotational movement of the valve disc. Control components such as solenoid valves and positioners may be added to enhance the valve's functionality and precision.
Operating Principles
The operation of pneumatic butterfly valves relies on the principles of pneumatic power transmission. When compressed air is introduced into the actuator, it creates pressure that moves the piston or diaphragm. This movement is then converted into rotational force, which turns the valve shaft and, consequently, the disc.
For simple on-off applications, the valve operates between two positions: fully open and fully closed. In more advanced setups, the valve can modulate flow by positioning the disc at various angles between these extremes. This modulation is achieved by precisely controlling the air pressure supplied to the actuator, allowing for fine-tuned flow regulation.
Types of Pneumatic Actuators
There are two main types of pneumatic actuators used in butterfly valves: rack and pinion, and scotch yoke. Rack and pinion actuators use a linear rack gear that meshes with a pinion gear on the valve shaft, converting linear motion into rotation. Scotch yoke actuators employ a slotted yoke mechanism that transforms the linear piston movement into rotary motion. Each type has its advantages, with rack and pinion offering compact design and constant torque, while scotch yoke actuators provide high torque output at the closed position.
Applications of Pneumatic Butterfly Valves in Various Industries
Oil and Gas Industry
In the oil and gas sector, pneumatic butterfly valves play a crucial role in various processes. They are extensively used in pipeline systems for crude oil and natural gas transportation, where their quick-acting nature allows for rapid flow control and emergency shutoffs. These valves are also employed in refineries for process control, helping to manage the flow of different petroleum products during refining stages.
Offshore platforms benefit from the compact design and reliability of pneumatic butterfly valves, using them in seawater cooling systems and fire protection networks. Their ability to handle large flow rates makes them ideal for loading and unloading operations at oil terminals and storage facilities.
Water and Wastewater Treatment
The water treatment industry relies heavily on pneumatic butterfly valves for efficient process control. In water distribution networks, these valves regulate flow and pressure, ensuring consistent water supply to different areas. They are also used in filtration systems, controlling the backwash cycles that clean filter media.
In wastewater treatment plants, pneumatic butterfly valves are employed in various stages of the treatment process. They control the flow of wastewater between different treatment tanks, regulate aeration in biological treatment processes, and manage the discharge of treated effluent. Their corrosion-resistant materials and tight shutoff capabilities make them well-suited for the harsh environments found in wastewater facilities.
Chemical and Petrochemical Processing
The chemical industry benefits from the versatility of pneumatic butterfly valves in handling a wide range of fluids, including corrosive chemicals and abrasive slurries. These valves are used in reactor feed lines, product transfer systems, and storage tank operations. Their ability to provide precise flow control is particularly valuable in batch processing applications, where accurate material dosing is critical.
In petrochemical plants, pneumatic butterfly valves are employed in cooling water systems, process gas lines, and product blending operations. Their fast-acting nature makes them suitable for emergency shutdown systems, providing an additional layer of safety in these high-risk environments.
Advantages and Considerations for Implementing Pneumatic Butterfly Valves
Benefits of Pneumatic Actuation
Pneumatic actuation offers several advantages in butterfly valve applications. The use of compressed air as the power source provides a clean, readily available, and safe medium for valve operation. This is particularly beneficial in explosive or flammable environments where electrical actuation might pose safety risks. Pneumatic systems also offer fast response times, allowing for quick valve closure in emergency situations.
The simplicity of pneumatic systems contributes to their reliability and ease of maintenance. With fewer moving parts compared to electric or hydraulic alternatives, pneumatic actuators tend to have longer service lives and require less frequent maintenance. This translates to reduced downtime and lower operational costs over the valve's lifespan.
Design Considerations and Selection Criteria
When selecting pneumatic butterfly valves for specific applications, several factors must be considered. The size and pressure rating of the valve should match the system requirements, ensuring proper flow capacity and pressure containment. The choice of materials for the valve body, disc, and seat is crucial, as they must be compatible with the process fluid and operating conditions to prevent corrosion or degradation.
The actuator sizing is another critical aspect, as it must provide sufficient torque to operate the valve under all anticipated conditions, including maximum differential pressure. Consideration should also be given to the control accessories required, such as limit switches, positioners, or solenoid valves, to achieve the desired level of automation and control precision.
Maintenance and Troubleshooting
Regular maintenance is essential to ensure the longevity and reliable operation of pneumatic butterfly valves. This typically involves periodic inspection of seals and seats for wear or damage, lubrication of moving parts, and checking for air leaks in the pneumatic system. The actuator's performance should be monitored to detect any changes in operating times or unusual noises that might indicate potential issues.
Common troubleshooting scenarios include addressing air leaks, which can lead to reduced actuator performance or increased energy consumption. Sticking or binding of the valve disc may occur due to buildup of deposits or misalignment, requiring cleaning or adjustment. In some cases, recalibration of positioners or replacement of worn components may be necessary to restore optimal valve performance.
Conclusion
Pneumatic butterfly valves represent a robust and versatile solution for flow control across various industries. Their combination of simple design, reliable operation, and precise control capabilities makes them indispensable in applications ranging from oil and gas processing to water treatment and chemical manufacturing. By understanding the working principles, applications, and maintenance requirements of these valves, engineers and plant operators can maximize their performance and longevity, ensuring efficient and safe operation of industrial processes.
